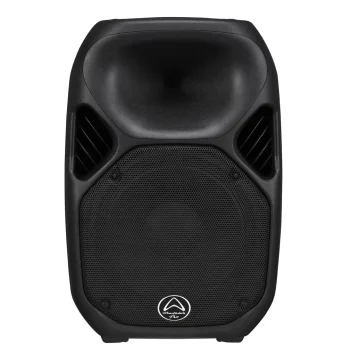

Wharfedale Titan X15 – 15″ 2-Way Passive Speaker

Portable, lightweight and durable the Titan X15 is one of our most versatile loudspeakers. Rated at 1600W peak and with 129dB Max SPL, it’s an ideal solution for small to medium sized venues.

We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN X15 raises the bar for portable PA and is built to last.

Key Features

• 400W RMS / 800W Program / 1600W Peak
• 129dB Max SPL
• 50Hz – 20kHz frequency response
• Titanium HF Driver has been honed acoustically for high-frequency detail and power
• 15″ LF Driver rejects moisture for resistance in all environments
• Proprietary 100° x 80° Hybrid Symmetry Horn design
• 3″ LF voice coil
• Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
• 10 x M8 rigging points and integral tripod stand adapter
• Rugged protective grille and top-stacking receptacles
• Trapezoid design for arrays as well as stage monitor applications
• Available in black or white
• Titan Tourbags available

Specifications

System Type	Passive
Configuration	15″ 2-way
Frequency Response (+/-3dB)	50Hz-20kHz
Frequency Range (- 10 dB)	40Hz-20kHz
Sensitivity (2.83v/1m)	97dB
Calculated Maximum SPL @1m	129dB
System Rated Impedance	8Ω
Low Frequency Transducer
Size	381mm / 15″
Voice-Coil Size	75mm / 3.0″
Rated Impedance	8Ω
LF Power (re:AES2-2012)	400W
High Frequency Transducer
HF Driver Type	Compression Driver
Voice-Coil Size	44mm / 1.75″
Exit Size	25mm / 1″
Diaphragm Material	Titanium
Rated Impedance	8Ω
HF Power (re:AES2-2012)	40W
Nominal Coverage (H x V)	Hybrid Symmetry Horn 100°x80°
Power
System Continuous Power	400w
System Programme Power	800W
System Peak Power	1600w
Crossover frequency	2.7kHz
Input Connector	2 x NL4 (speakON compatible)
Hardware	35mm Speaker Pole Insert with lock screw 2 handles on sides M8 x 10 rigging points
Enclosure
Enclosure Material	Trapezoidal / Polypropylene
Finish	Black / white
Grille Material & Finish	1.2 steel
Dimensions – Unpacked
Height	728.5mm / 28.7″
Width Front	480.6mm / 18.9″
Width Rear	480.6mm / 18.9″
Depth	395.6mm / 15.6″
Dimensions – Packed
Height	830mm / 32.7″
Width Front	514mm / 20.2″
Width Rear	514mm / 20.2″
Depth	489mm / 19.3″
Weight
Net Weight	22.0kg / 48.4lbs
Gross Weight	26.8kg / 59.0lbs
