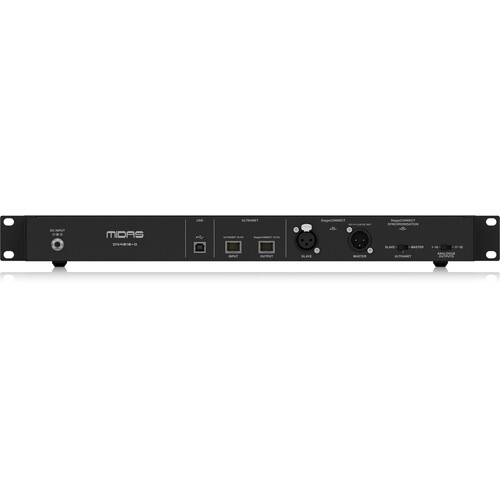

Midas DN4816-O – StageConnect Interface 16 Analog Outputs

Name: Midas DN4816-O - StageConnect Interface 16 Analog Outputs
SKU: 33392555425
Availability: InStock

R6,249.00

Pay over 3 EQUAL zero-interest instalments of R2,083.00 with PayJustNow.
Find out how...

HOW IT WORKS

PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and you get your goods as if you have paid in full. The remaining two instalments are debited on your specified instalment date.

Browse online or in-store and proceed to check-out

Choose PayJustNow as your payment method

Create your account and get an instant approval decision

Complete your transaction

WHAT YOU WILL NEED

BE OVER 18
YEARS OLD

BE AN SA
RESIDENT

HAVE A DEBIT OR
CREDIT CARD

HAVE A VALID
EMAIL ADDRESS

0% INTEREST. 3 PAYMENTS. NO STRESS.

WHY PAY ANY OTHER WAY?

SKU: 33392555425 Category: Uncategorized Brand: Midas Brand: Midas

Description

Midas DN4816-O – StageConnect Interface 16 Analog Outputs

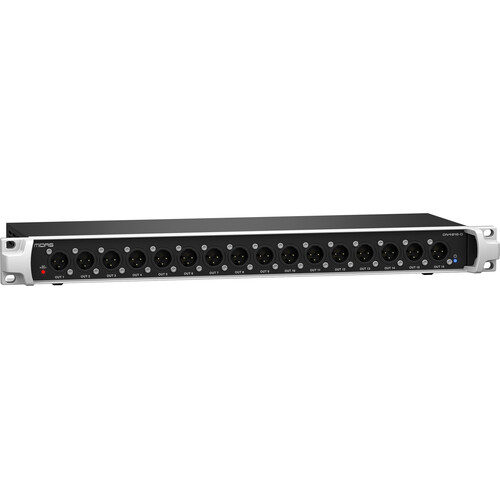

Connect additional line outputs to your monitor or FOH console with the Midas DN4816-O, a 1 RU breakout box with 16 analog outputs that can be used to connect wireless transmitters for in-ear monitoring.

The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available, providing easily scalable connectivity. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.

Overview

Breakout box with 16 balanced XLR line out for StageConnect and Behringer Ultranet systems
Analog output box for other StageConnect devices, Midas HUB4 and Behringer WING, or Ultranet transmitters such as Midas MR18/M32 and DL16/DL32 stageboxes
StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable
Two units can be cascaded for a total of 32 low-latency analog outputs fed from a single StageConnect source
Flexible connectivity on stage and between side racks using any balanced microphone cable
Supports bidirectional audio configurations with control data and 12 VDC / 18W remote power
Master mode allows exchanging multichannel audio with a chain of other StageConnect devices
Operates in Master mode or as Slave synchronised to StageConnect or Ultranet input streams
Ultranet output for feeding Turbosound iQ speaker systems and Behringer P16 personal monitoring directly from StageConnect bus
External power supply for standalone use and offering remote power on the StageConnect Master output

StageConnect – The Future of XLR

StageConnect delivers a new interface standard to be released by Music Tribe after two years of development. The Midas DN48XX Series is one of the first available I/O-Interfaces based on the StageConnect-Standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.05 ms of latency. For optimum performance and long cable runs, 110-ohm DMX cable is required.

Any standard XLR or DMX cable can be used to transmit more than one channel of audio bidirectionally
Allows the passage of control data or MIDI at the same time
Connected StageConnect device can receive up to 18W of power through the same cable

Ecosystem and Beyond

The DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. StageConnect was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind, the devices can be used with all StageConnect devices like HUB4. The StageConnect Ecosystem opens a wide field of audio devices. May it be several I/O devices spread over the Stage or equipment in the siderack, the use cases for the DN48XX Series StageConnect Interfaces are virtually endless.

Features

Breakout Box with 16 Balanced XLR Out
Use with Other StageCONNECT Devices
32-Channel Audio Transmission
Uses Standard XLR Cables / DMX Cables
Low Latency, 24-Bit / 44.1/48 kHz PCM
Supports Bidirectional Audio
Dual Ultranet Outputs for Monitor System
Bus Powered or 12 VDC Power Supply

Specifications

General

Compatibility	Midas StageConnect
Frequency Response	20 Hz to 20 kHz ±0.2 dB
Dynamic Range	110 dB
Crosstalk	110 dB (at 1 kHz, Adjacent Channels)
Noise	-90 dBu (20 Hz to 20 kHz Bandwidth)
Distortion	0.004% / 1 kHz / 0 dBu Out

Inputs / Outputs

USB I/O	1 x USB-B Female Input/Output
Audio I/O	16x XLR 3-Pin Line Output
Impedance	Output Unbalanced: 100 Ohms Balanced: 200 Ohms
Maximum Output Level	+21 dBu
Digital I/O	Ultranet: 2 x RJ45 Shielded Cat 5e Cable Maximum Length: 246.1′ / 75 m StageConnect: 1 XLR Male, 1 XLR Female Shielded Balanced 110-Ohm DMX Cable: 131.2′ / 40 m Maximum

Power

Power Source	AC Adapter with Power Brick (Included)
DC Input Power	12 VDC at 1.5 A
Power Consumption	9 W

Environmental

Environmental Resistance	No
Operating Temperature	41 to 113°F / 5 to 45°C

Physical

Dimensions	19 x 6.7 x 1.9″ / 48.3 x 17 x 4.8 cm
Weight	4.9 lb / 2.2 kg

Packaging Info

Package Weight	6.33 lb
Box Dimensions (LxWxH)	23 x 9.9 x 4.3″
