Behringer X32 RACK 16 x 8 Digital Rack Mixer
Behringer X32 RACK 16 x 8 Digital Rack Mixer

Behringer X32 RACK – 16×8 Digital Rack Mixer

R22,000.00

From Behringer, the Behringer X32 RACK – 16×8 Digital Rack Mixer is a professional digital mixers solution designed for church, live sound, studio, and event applications.

Pay over 3 EQUAL zero-interest instalments of R7,333.34 with PayJustNow.
Find out how...

HOW IT WORKS

PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and receive your goods immediately. The remaining two instalments are debited on your selected instalment dates.

Browse online or in-store and proceed to checkout

Choose PayJustNow as your payment method

Create your account and receive an instant approval decision

Complete your transaction

WHAT YOU WILL NEED

Be over 18 years old

Be a South African resident

Have a debit or credit card

Have a valid email address

0% INTEREST. 3 PAYMENTS. NO STRESS.

WHY PAY ANY OTHER WAY?

Out of stock

SKU: 15123555387 Category: Brand:

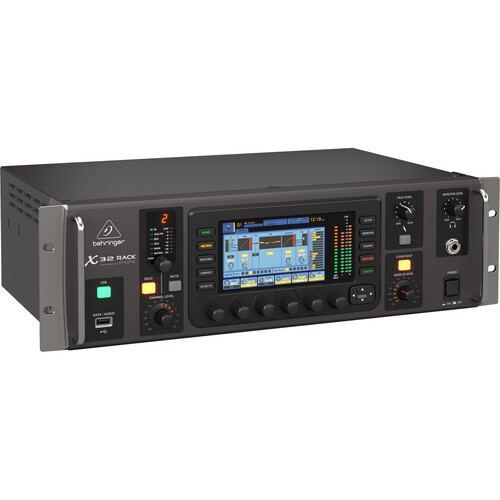

Behringer X32 RACK 16 x 8 Digital Rack Mixer

Ideal for professional live and recording applications, the Behringer X32 RACK is a 40-channel, 25-bus digital rackmount mixing console that provides a wealth of features in a compact design. The mixer features 16 fully programmable MIDAS-designed mic preamps, while the main outputs, mix busses, and independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

The X32 RACK also has 8 analog XLR outputs as well as 6 balanced line-level 1/4″ Aux inputs and outputs and two 1/4″ headphone jacks. The talkback section allows you to communicate with an external mic. The mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultralow jitter and latency. The integrated expansion port ships with a 32 x 32 X-USB USB audio card installed.

X32 RACK Overview
  • 40-input channel, 25-bus, 3 RU rack-mountable digital mixer for live and installed sound application
  • 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
  • 8 XLR outputs plus 6 additional line in/outputs, a TRS phone connector and a talkback section with XLR mic input
  • 32 x 32 channel USB 2.0 audio interface
  • iPad and iPhone apps for professional remote operation available free of charge—no host PC required
  • High-resolution 5″ day-viewable Color TFT for easy viewing of workflow components and parameters
  • Main LCR, 6 matrix buses, and all 16 mix buses, each featuring inserts, 6-band parametric EQ’s and full dynamics processing, plus 8 DCA, and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250, and Quantec QRS, etc.
  • 40-bit floating-point DSP features “unlimited” dynamic range with no internal overload and near-zero overall latency (0.8 msec)
  • Powerful scene management for convenient handling of complex productions
  • 48-channel Digital Snake ready via dual AES50 ports, featuring Klark Teknik’s SuperMAC networking capability for ultralow jitter and latency
  • USB type-A connector, providing file storage and uncompressed stereo recordings plus show presets and system updates
  • ULTRANET connectivity for Behringer’s P16 Personal Monitoring System
  • Networked remote control via Ethernet for show setups with on-screen software editor
  • Built-in expansion port for audio interface cards or digital networking bridges
  • MIDI In/Out for remote scene recall or controlling other MIDI equipment
  • Future firmware updates, including new FX “Plug Ins”, downloadable from behringer.com free of charge
Enhanced Workflow and Multi-Channel Networking
With the introduction of a recent X32 version 2.0 firmware, Behringer have not only dramatically enhanced the workflow, but also added all-new capabilities, including “Acoustic Integration” for total connectivity and control of your speaker and In-Ear Monitor (IEM) systems. They completely re-imagined the more than 50 onboard FX “Plug-Ins” and added classic processor examples based on “True Physical Modelling”. For even more flexibility, the X32 RACK features swappable expansion cards for connecting to other multi-channel audio networking via USB, ADAT, MADI, and Dante protocols, in addition to the onboard ULTRANET and AES50 connectivity. Above all, the X32 COMPACT puts the power of digital in your hands—without compromise.
Features
  • 40 Input Channels, 25-Bus Mixing Console
  • Programmable MIDAS-Designed Mic Preamps
  • 16 XLR Inputs + 8 XLR Outputs
  • 32×32 USB Audio Interface Card
  • High-Resolution 5″ Color TFT Display
  • 6-Band EQ + 8 Virtual Stereo FX
  • 40-Bit Floating-Point DSP
  • 48-Channel Digital Snake Ready via AES50
  • ULTRANET for P-16 Personal Monitoring
Specifications
Mixer
Max I/O Capacity
40x Input / 25x Output
Number of Analog Input Channels
16
Number of Mic Preamps
16
Number of Analog Output Channels
8
Mix Routing
25x Stereo Bus
Groups
8x DCA Group
6x Mute Group
Presets
No
Display
5″ LCD (Daylight-Viewable)
Faders & Level Adjustment
No
Meters
2x 18-Segment LED
Signal Processing
Gain/Trim Range
Mic:
0 dB to +72 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels:
Compressor, Limiter, Soft Limiter, Gate
EQ
6-Band EQ
Graphic EQ
31-Band 1/3 Octave
Solo/Mute
Solo, Mute per Input Channel
Built-In Effects
8x Stereo
Audio Delay
Yes
Automatic Mic Mixing
No
Digital Audio
Sample Rates
44.1 / 48 kHz
Bit Depth
AD/DA Conversion:
24-Bit
Performance
Frequency Response
10 Hz to 22 kHz +0/-1 dB (at 48 kHz)
Max Input Level
Mic Input:
+23 dBu
Line Input:
+16 dBu
Analog Dynamic Range
Input to Output:
106 dB at Unity Gain
I/O Impedance
XLR Mic Input:
5 Kilohms (Unbalanced)
10 Kilohms (Balanced)
1/4″ TRS Line Input:
20 Kilohms (Unbalanced)
40 Kilohms (Balanced)
XLR Output:
75 Ohms (Balanced/Unbalanced)
Line Output:
150 Ohms (Unbalanced)
300 Ohms (Balanced)
Noise Floor
-87 dB A-Weighted
THD+N
Mic Input to Analog Output:
0.006% at +20 dB Gain (0 dBu)

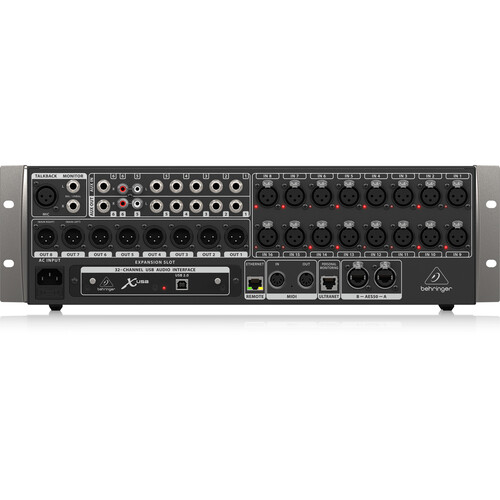

Connectivity
Analog Inputs
16x XLR 3-Pin Balanced Mic/Line Input
1x XLR 3-Pin Balanced Mic/Talkback Input
1x Stereo RCA Coaxial Unbalanced Aux Input
6x 1/4″ TRS Aux Return
Analog Outputs
8x XLR 3-Pin Main/Bus Output
1x Stereo RCA Aux Output (1 Stereo Pair)
2x 1/4″ TRS Stereo Control Room/Monitor Output
6x 1/4″ TRS Aux Output
1x 1/4″ TRS Headphone Output
Phantom Power
+48 V (Selectable on Individual Inputs)
Digital I/O
1x RJ45 Ethernet (Control, 1 Gb/s)
1x RJ45 Ultranet (I/O)
2x RJ45 AES50 (I/O)
MIDI I/O
1x MIDI 5-Pin In
1x MIDI 5-Pin Out
USB I/O
1x USB-B 2.0 (Audio Playback, Multitrack Record)
USB I/O Capacity
32x Input / 32x Output
Expansion Ports
No
Wireless
No
External Display I/O
No
Recording
Max Multitrack Recording
32 Tracks
Media Support
USB Drive
Compatibility
OS Compatibility
Computer: macOS / Windows
Mobile: Android/iOS
Mobile Device Compatibility
iPad
Android Smartphone
Android Tablet
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
Yes
Rackmount Size
3 U
Operating Conditions
41 to 104°F / 5 to 40°C
Dimensions
19 x 5.2 x 11.3″ / 48.3 x 13.2 x 28.7 cm
Weight
14.4 lb / 6.5 kg
