Behringer X32 32x16 Digital Mixing Console

Behringer X32 – 32×16 Digital Mixing Console

Name: Behringer X32 - 32x16 Digital Mixing Console
SKU: 37136555052
Availability: InStock

R48,299.00

Pay over 3 EQUAL zero-interest instalments of R16,099.67 with PayJustNow.
Find out how...

HOW IT WORKS

PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and you get your goods as if you have paid in full. The remaining two instalments are debited on your specified instalment date.

Browse online or in-store and proceed to check-out

Choose PayJustNow as your payment method

Create your account and get an instant approval decision

Complete your transaction

WHAT YOU WILL NEED

BE OVER 18
YEARS OLD

BE AN SA
RESIDENT

HAVE A DEBIT OR
CREDIT CARD

HAVE A VALID
EMAIL ADDRESS

0% INTEREST. 3 PAYMENTS. NO STRESS.

WHY PAY ANY OTHER WAY?

SKU: 37136555052 Category: Digital Mixers Brand: Behringer Brand: Behringer

Description

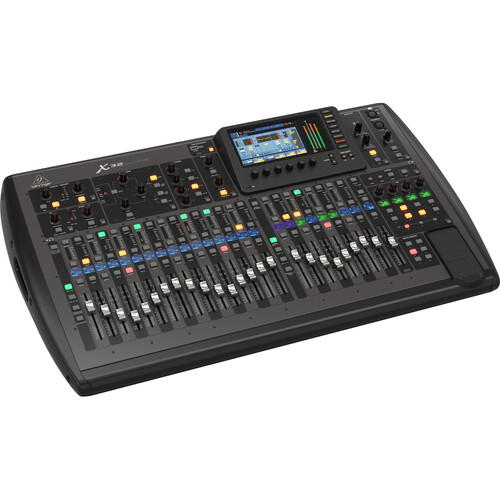

Behringer X32 32×16 Digital Mixing Console

Ideal for professional live and recording applications, the Behringer X32 is a 40-channel, 25-bus digital mixing console that provides a wealth of features in a compact design. The mixer features 32 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

The mixer also has 16 analog XLR outputs as well as 6 balanced line-level 1/4″ Aux inputs and outputs and two 1/4″ headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultralow jitter and latency. The integrated expansion port ships with a 32 x 32 X-USB USB audio card installed.

Features

40-input channel, 25-bus digital mixing console for Studio and Live application
32 Midas-designed, fully programmable mic preamps for audiophile sound quality
25 Fully automated motorized 100mm faders allow for instant overview, powerful scene management and DAW control
16 XLR outputs plus 6 additional line in/outputs, two phone connectors, and a talkback section with integrated or external mic
Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI and Mackie Control
iPad and iPhone apps for professional remote operation available free of charge, no host PC required
High-resolution 7″ day-viewable Color TFT for easy viewing of workflow components and parameters
Main LCR, 6 matrix buses, and 16 mix buses each featuring inserts, 6-band parametric EQ’s and full dynamics processing, plus 8 DCA and 6 mute groups
Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250, and Quantec QRS, etc.
40-bit floating-point DSP features “unlimited” dynamic range with no internal overload and near-zero overall latency (0.8 msec)
Powerful scene management for convenient handling of complex productions
48-channel Digital Snake ready via AES50 ports, featuring Klark Teknik’s SuperMAC networking capability for ultralow jitter and latency
USB type-A connector, providing file storage and uncompressed stereo recordings, plus show presets and system updates
Dedicated and easy-to-use channel-strip section with direct-access controls and graphic user interface for intuitive workflow
Additional user-definable control section allows for on-the-fly adjustments of your favorite parameters
ULTRANET connectivity for Behringer’s P-16 Personal Monitoring System plus AES/EBU stereo digital output and MIDI
Networked remote control for show setups with on-screen software editor via Ethernet
Built-in expansion port for audio interface cards or digital networking bridges
Future firmware updates, including new FX “Plug Ins”, downloadable from behringer.com free of charge.

Specifications

Mixer

Max I/O Capacity	40x Input / 25x Output
Number of Analog Input Channels	32
Number of Mic Preamps	32
Number of Analog Output Channels	16
Mix Routing	25x Stereo Bus
Groups	8x DCA Group 6x Mute Group
Presets	No
Display	7″ LCD (Daylight-Viewable)
Display Resolution/Color	Main Display: 800 x 480 / RGB Color Channel Display: 128 x 64 / RGB Color
Faders & Level Adjustment	25x 3.9″ / 100 mm Motorized Fader(Touch Sensitive)
Meters	2x 24-Segment LED
Meter Range	-57 dB to +16 dB Before Clip

Signal Processing

Gain/Trim Range	Mic: 0 dB to +72 dB
Input Polarity	Normal/Reverse
Dynamic Processing	Input Channels: Compressor, Limiter, Soft Limiter, Gate
EQ	6-Band EQ
Graphic EQ	31-Band 1/3 Octave
Solo/Mute	Solo, Mute per Input Channel Mute per Master
Channel Output/Source Monitoring	AFL
Real Time Analyzer	1x 100-Band
Automatic Mic Mixing	No

Digital Audio

Sample Rates	44.1 / 48 kHz
Bit Depth	AD/DA Conversion: 24-Bit
DSP	40-Bit Floating Point
Converter Dynamic Range	114 dBA at 48 kHz
Latency	0.8 ms (Analog Input to Analog Output) 1.1 ms (Stagebox Input to Stagebox Output)

Performance

Frequency Response	10 Hz to 22 kHz +0/-1 dB (at 48 kHz)
Max Input Level	Mic Input: +23 dBu Line Input: +16 dBu
Output Level	1/4″ Aux/Line Output: +16 dBu XLR Output: +21 dBu 1/4″ TRS Headphone Output: +25 dBm at Max Gain (Unbalanced)
Analog Dynamic Range	Input to Output: 106 dB at Unity Gain
I/O Impedance	XLR Mic Input: 5 Kilohms (Unbalanced) 10 Kilohms (Balanced) 1/4″ TRS Line Input: 20 Kilohms (Unbalanced) 40 Kilohms (Balanced) XLR Output: 75 Ohms (Balanced/Unbalanced) Line Output: 150 Ohms (Unbalanced) 300 Ohms (Balanced)
Crosstalk	Adjacent Channels: 100 dB at 1 kHz
CMRR	XLR Mic Input: > 70 dB at +20 dB Gain > 80 dB at +40 dB Gain
EIN	XLR Mic Input: -128 dBu
Noise Floor	-87 dB A-Weighted
THD+N	Mic Input to Analog Output: 0.006% at +20 dB Gain (0 dBu)

Connectivity

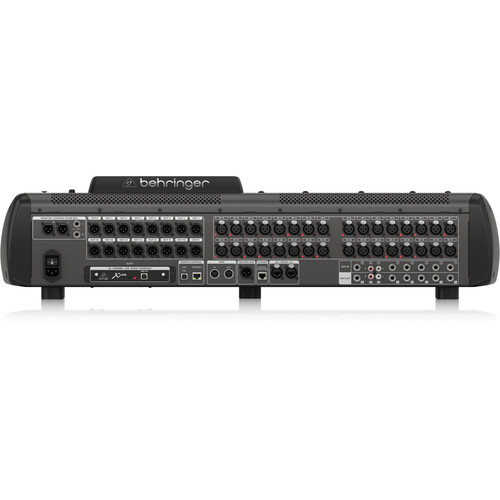

Analog Inputs	32x XLR 3-Pin Balanced Mic/Line Input 1x XLR 3-Pin Balanced Mic/Talkback Input 1x Stereo RCA Coaxial Unbalanced Aux Input 6x 1/4″ TRS Aux Return
Analog Outputs	16x XLR 3-Pin Main/Bus Output 1x Stereo RCA Aux Output (1 Stereo Pair) 2x XLR 3-Pin Stereo Control Room/Monitor Output (1 Stereo Pair) 2x 1/4″ TRS Stereo Control Room/Monitor Output 6x 1/4″ TRS Aux Output 2x 1/4″ TRS Headphone Output
Phantom Power	+48 V (Selectable on Individual Inputs)
Digital I/O	1x RJ45 Ethernet (Control, 1 Gb/s) 1x RJ45 Ultranet (I/O) 2x RJ45 AES50 (I/O) 1x XLR AES3 Output
MIDI I/O	1x MIDI 5-Pin In 1x MIDI 5-Pin Out
USB I/O	1x USB-B 2.0 (Control) 1x USB-B 2.0 (Audio Playback, Multitrack Record)
USB I/O Capacity	32x Input / 32x Output
Expansion Ports	No
Wireless	No
Mobile App Compatible	Yes: Android & iOS App Name: X32-Mix, X32-Q Functionality: Adjust Settings, Remote Control, Setup
External Display I/O	No

Recording

Max Multitrack Recording	32 Tracks
Media Support	USB Drive

Compatibility

OS Compatibility	macOS Windows
Mobile Device Compatibility	iPad Android Smartphone Android Tablet
Required Hardware	Available USB 2.0 Port

Power

Input Power	100 to 240 VAC, 50 / 60 Hz
AC Power I/O	1x IEC Input
Power Consumption	120 W

Physical

Rack Mountable	No
Operating Temperature	41 to 104°F / 5 to 40°C
Dimensions	35.4 x 20.8 x 7.9″ / 89.9 x 52.8 x 20.1 cm
Weight	45.4 lb / 20.6 kg

Packaging Info

Package Weight	63 lb
Box Dimensions (LxWxH)	40 x 26 x 13″
